Husqvarna DS150 Core Drill Stand

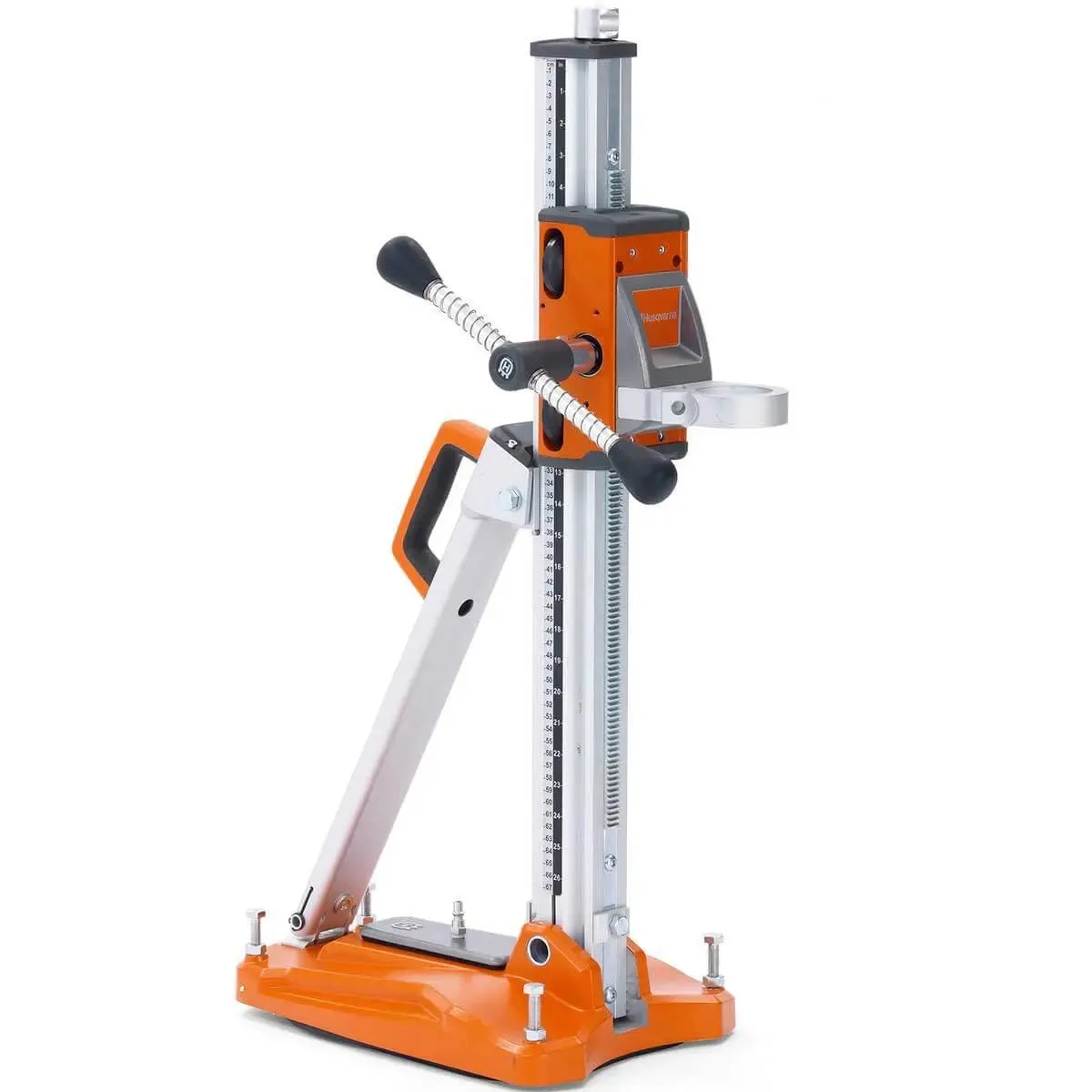

The Husqvarna DS 150 is a versatile and lightweight drill stand made of aluminum
Features
- It comes standard with a combination vacuum/anchor base
- The stand can be tilted from 0 to 45 degrees for angle drilling
- Designed to fit most hand-held core drill motors
- Recommended for use with the Husqvarna DM-230

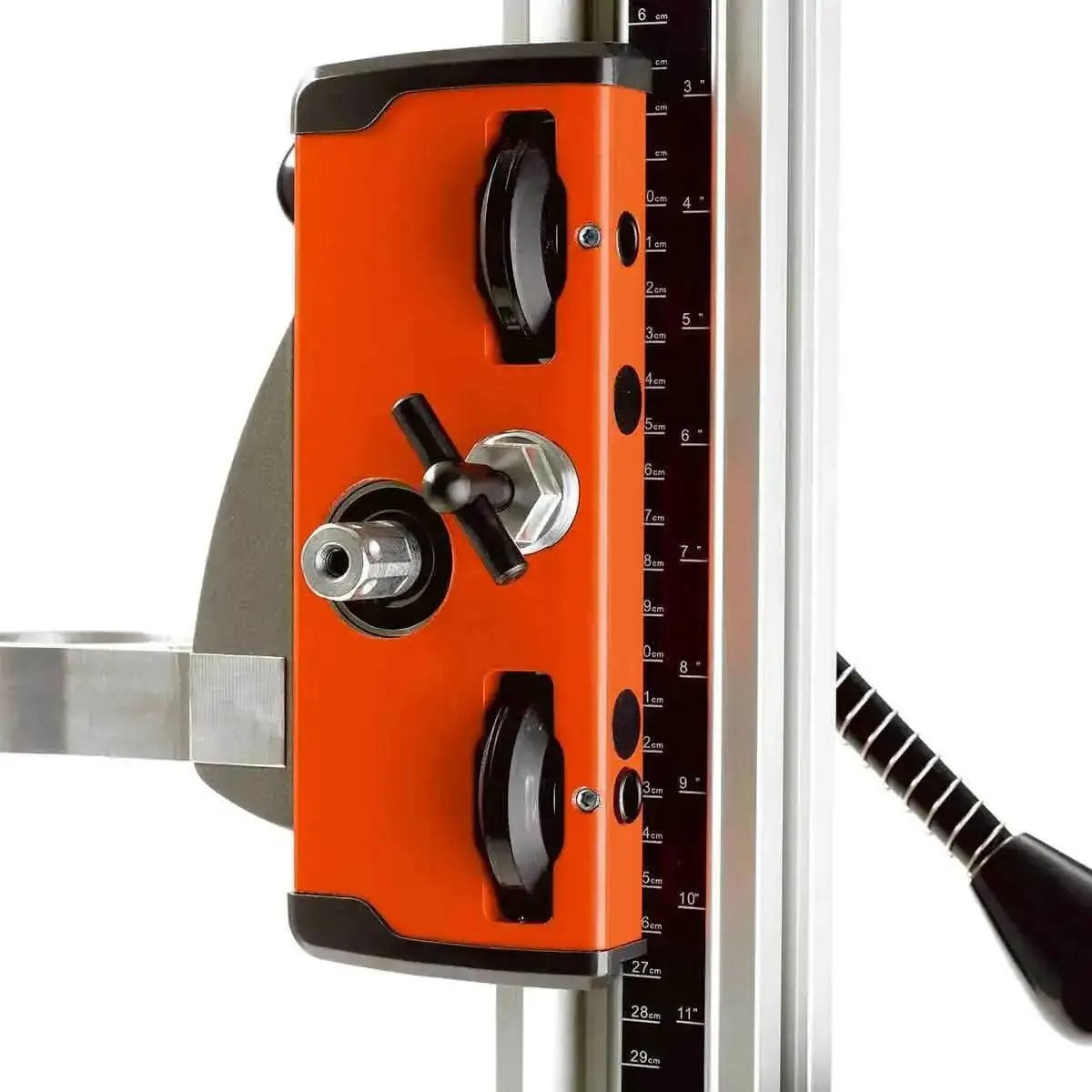

- V-groove roller carriage allows for accurate alignment that requires minimal adjustment
- Drill holes up to 6" (153mm) in diameter
- Maximum length of travel: 19"
Technical Information
- Max Bit Capacity: 6-inch

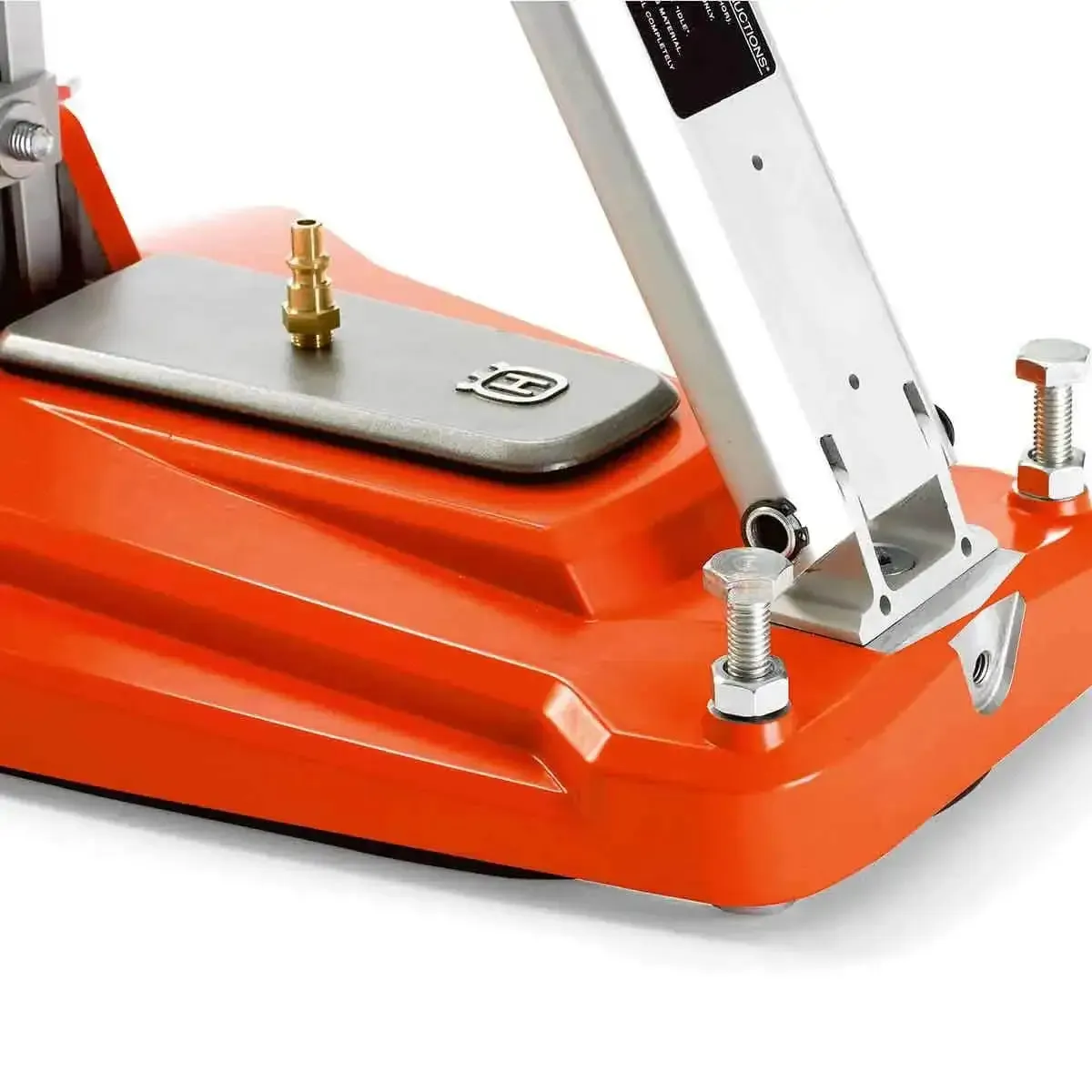

- Base Material Cast aluminum, 4 leveling screws
- Max length of travel: 19"
- Weight: 31 lbs (14 kg)
Benefits
- Light and compact, it is easy to transport and mount the stand

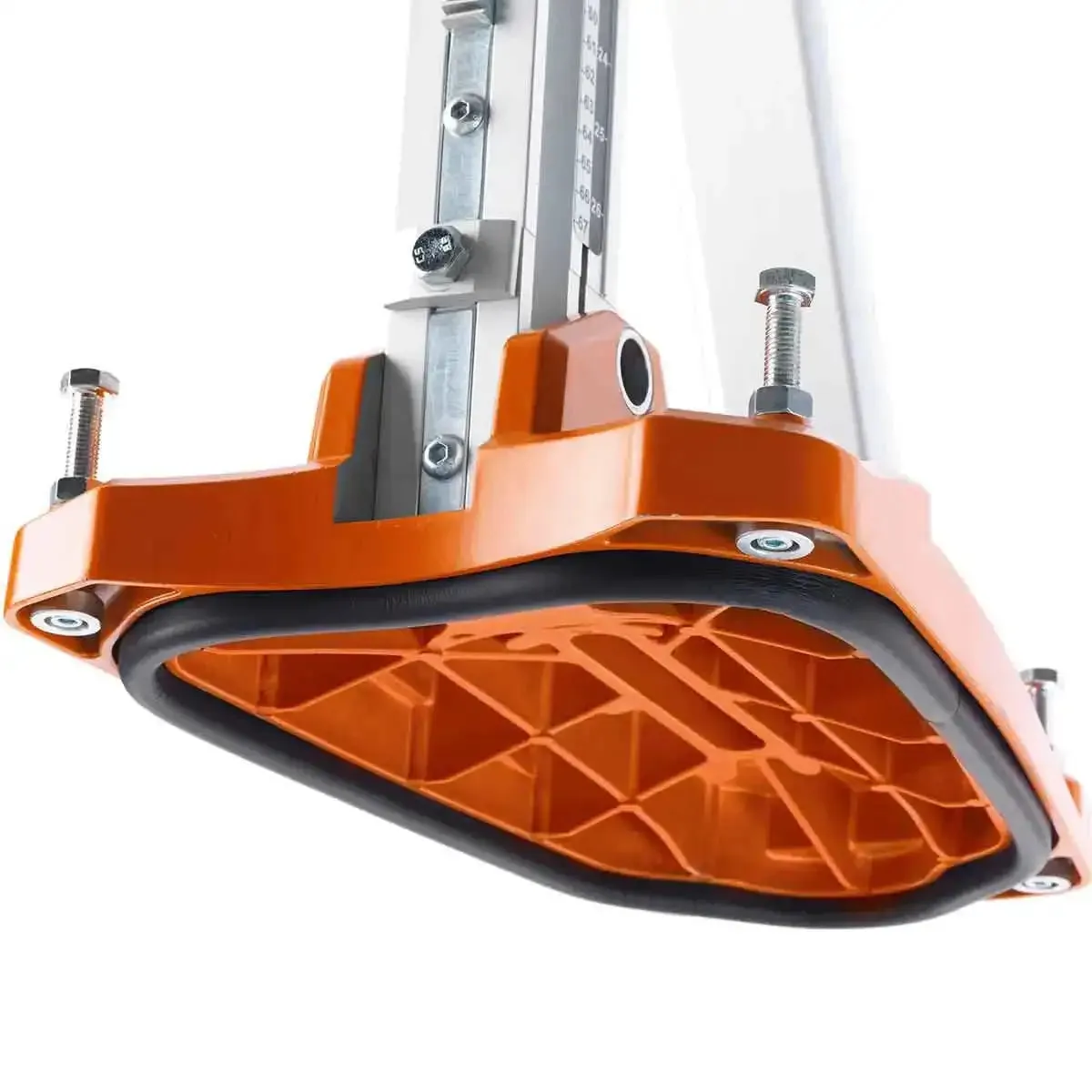

- Fast set-up with the integrated vacuum base eliminates anchoring or clamping
- Equipped with stabilizing guide rollers for accurate drilling as well as cleaner, straighter holes

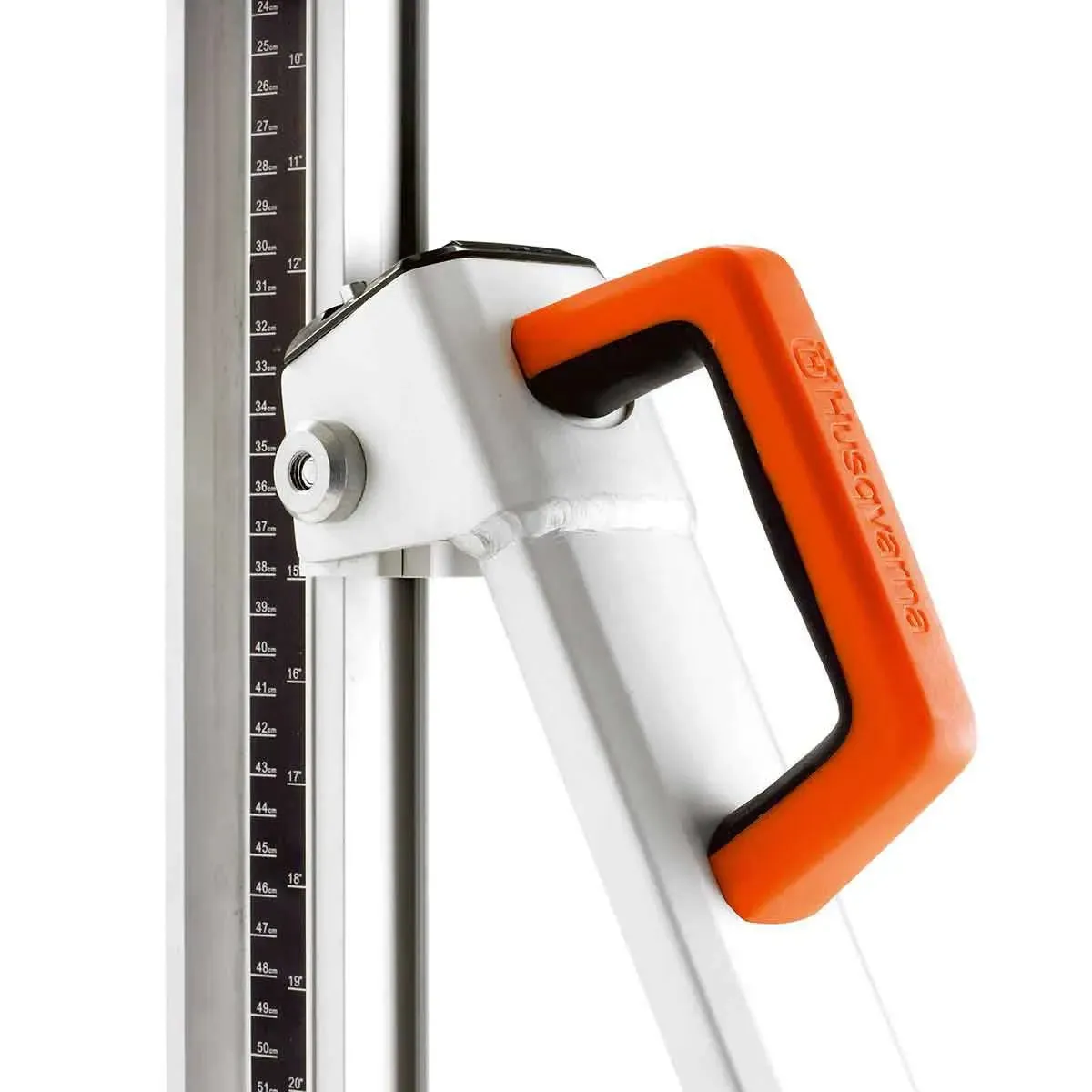

- The back support is clamped to the column with a rigid patented locking system, stabilizing operations
- Adjustment screws on the base plate, carriage, and back support can be adjusted with the feed handle
- The stand has a jacking screw on the top for easy clamping of the stand
